Chilled Water Pipe Sizing

Chilled Water Pipe Sizing. For more information about pipe sizing for water distriibution. For noise, keep velocity less than 4 feet per second (fps) for 2 dia.

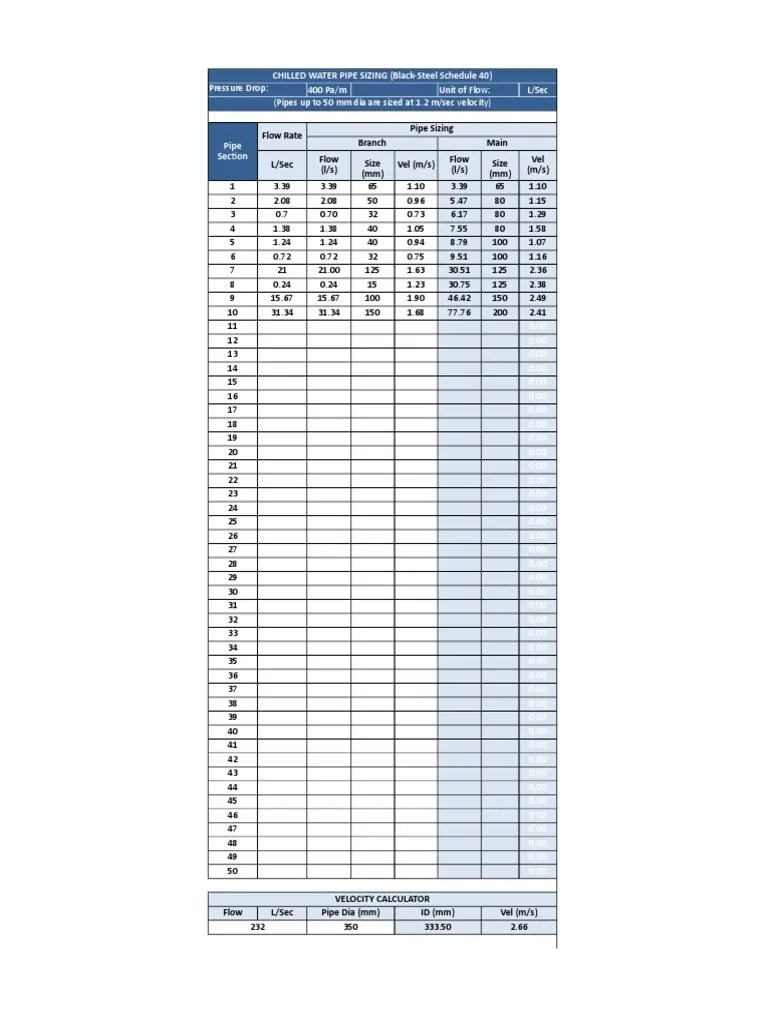

Chilled Water Pipe Size Selection Sheet Chw Flow Rate Pipe Size (Dia from www.scribd.com

See the master list for all commercial resources.) daikin north america llc. Before jumping in, identify the following variables: One recommendation places a velocity limit of 4 fps for 2 in.

Source: www.advantageengineering.com

A relatively crude way to do this is to use a rule of thumb such as water velocity = 3 m/s or 10 ft/s. Most of the time, friction loss is the primary factor when sizing chilled water pipes because small pipes are more common.

Source: instructionswaterheater.blogspot.com

This guide covers the design and selection of a chilled water pump. Most of the time, friction loss is the primary factor when sizing chilled water pipes because small pipes are more common.

Source: www.mepwork.com

See the master list for all commercial resources.) daikin north america llc. The chilled water pump is a part of an overall chilled water system that often includes a chiller, piping, valves/fittings, expansion tank, air handling units and fan coil units.

Source: www.engproguides.com

Master list of commercial resources. This guide covers the design and selection of a chilled water pump.

Source: www.scribd.com

This chart indicates the flow in gpm that a pipe size can generally handle: A better way is to assess the length of the header and the acceptable pressure drop;

Source: www.scribd.com

Let’s use the bell & gossett system syzer to show how the run hours affect the pipe size. (clicking on a company's name will take you to their web site.

Source: www.mepskills.com

The sizing is based on whether it is variable volume or constant volume and the number of hours it will run. Scribd is the world's largest social reading and publishing site.

Source: www.slideshare.net

If you have a special case, then please use the references sheet to add in your. For example, schedule 40 steel does not have a 5/8 inch pipe size.

Source: www.scribd.com

Regardless of what you are cooling, this formula will determine your needed chiller size. If you have a special case, then please use the references sheet to add in your.

Source: www.scribd.com

For example, schedule 40 steel does not have a 5/8 inch pipe size. Actually, welded carbon steel pipes are the same as erw carbon steel pipes.

Source: www.scribd.com

A better way is to assess the length of the header and the acceptable pressure drop; Chilled water header pipe sizing.

Source: pdfcoffee.com

The sizing is based on whether it is variable volume or constant volume and the number of hours it will run. Such manufacturing techniques also involved welding and have weld lines.

Source: www.scribd.com

See the master list for all commercial resources.) daikin north america llc. Let’s use the bell & gossett system syzer to show how the run hours affect the pipe size.

Source: greenbushfarmcom.blogspot.com

The chilled water pump is a part of an overall chilled water system that often includes a chiller, piping, valves/fittings, expansion tank, air handling units and fan coil units. Water flow rate through piping.

Source: www.facebook.com

(clicking on a company's name will take you to their web site. Master list of commercial resources.

“Optimizing Chilled Water Plants.” Heating/Piping/ Air Conditioning (Hpac) Engineering.

This chart indicates the flow in gpm that a pipe size can generally handle: Water flow rate through piping. These are the most common pipes used in chilled water pipe application.

If You Have A Special Case, Then Please Use The References Sheet To Add In Your.

F valve and fitting pressure drop valve equivalent to a length of straight pipe refer to table 10 & 11 in ashare 2009 fundamental chapter # 22 page. Scribd is the world's largest social reading and publishing site. Each pipe material and pipe type within that pipe material have its own standard pipe sizes.

Chilled Water Header Pipe Sizing.

For noise, keep velocity less than 4 feet per second (fps) for 2 dia. The pipe sizing rules are listed in the table 6.5.4.6. One recommendation places a velocity limit of 4 fps for 2 in.

Don’t Forget The Velocity When Sizing Big Pipes.

The chilled water pump is a part of an overall chilled water system that often includes a chiller, piping, valves/fittings, expansion tank, air handling units and fan coil units. See the master list for all commercial resources.) daikin north america llc. How to size chilled water pipe.

Water Flow Through Steel Or Copper Pipe Steel Or Copper Piping Is Generally Sized For Water Flow That Will Result In A Friction Loss Of Approximately 2 Feet Of Water Per 100 Feet Of Pipe Length And A Velocity Of 7 Feet Per Second Or Less.

6.5.4.6 explains the effects of pipe sizing on chilled water and condenser water systems. Pipe size gpm ½ up to 1.5 ¾. If you reduce air and turbulence, you can exceed the 4 ft limit.
